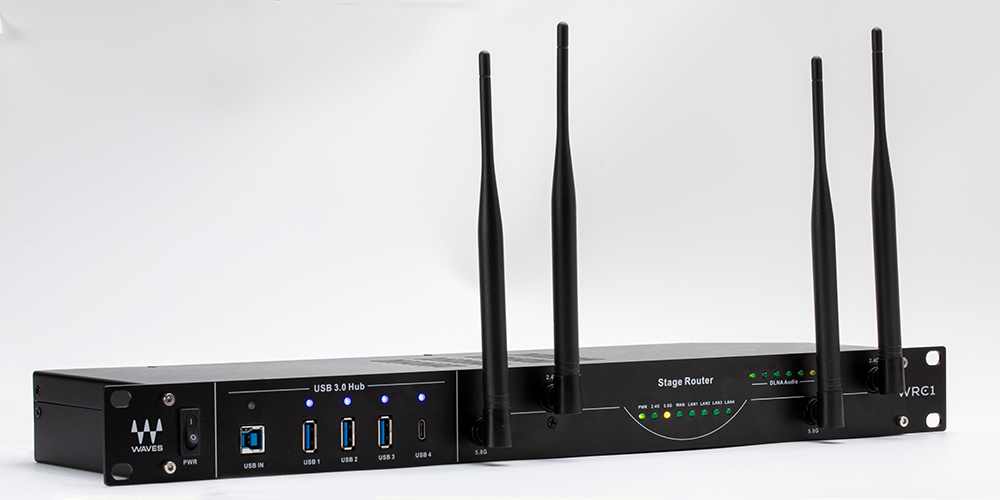

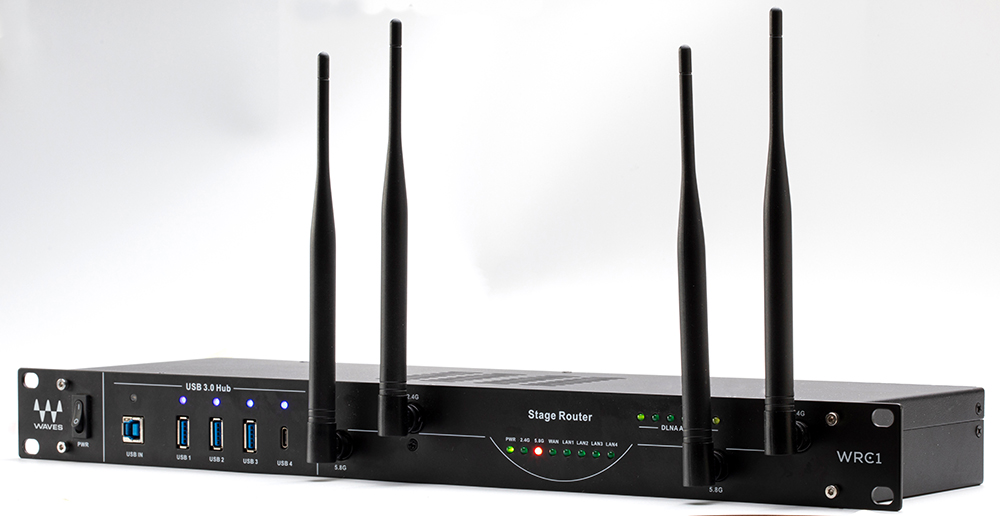

WRC-1 is an advanced rack-mountable wireless router, designed specifically for pro audio applications such as on-stage monitor mix control or DLNA playback.
The WRC-1 router is ideal for use with the Waves MyMon personal monitor mixing app, as well as other audio setups that require secure and robust WiFi connectivity.
To serve the unique needs of live sound engineers, stage productions and other live audio and AV environments, WRC-1 offers unique benefits that go beyond standard router features: rack-mountable design, made specifically for audio equipment racks; rugged and robust industrial build; and stronger RF distribution to secure dependable, steady communication.
WRC-1 comes with basic router management software to control the most common features required by users. In addition, an advanced set of router configuration features is accessible by installing a free advanced firmware package (scroll all the way down this page for details).
WRC-1 can also be used for DLNA playback from mobile devices (iOS, Android) and external computers (macOS, Windows). When connected to a mixer, the DLNA player allows anyone on stage (e.g. band members) to easily stream a music file from their mobile device directly to the mixing console.
Tech Specs
Max RF output with antenna (EIRP) = 100 mW (20 dBm)Rugged 19” rack mount metal chassis (1U) designed for use in audio equipment racksSimultaneous dual band operation (2.4 GHz and 5 GHz)Four (4) 10/100/1000 (1 WAN and 3 LAN) Gigabit Ethernet ports with auto-sensing technologyUp to 300+867 Mbps speedsWi-Fi security using 64/128 bit WEP, WPA/WPA2, and WPA mixed data encryptionSupports Wi-Fi Protected Setup (WPS) mode for network device configurationTrue diversity for both bands using 4 antennas (2 per band)Antennas mount to front of chassis via SMA connectors2 Pro-Grade lockable RJ45 ports + 3 standard RJ45 ports for physical network connectionsDLNA player with balanced analog outputs (XLR L/R) – compatible with iOS, Android, MacOS and Windows via the WRC-1 WiFi networkIntegrated USB3 hub with fast universal charging for devicesWAP (Wireless Access Point) for remote control/access for audio console, personal mixers, etc.Class C networkInternal universal power supplyVoltage: 110-240VFrequency: 50/60HzConsumption: 30W, 0.4A
WRC-1 ships with 4x radio antennas, power cable and adapters
