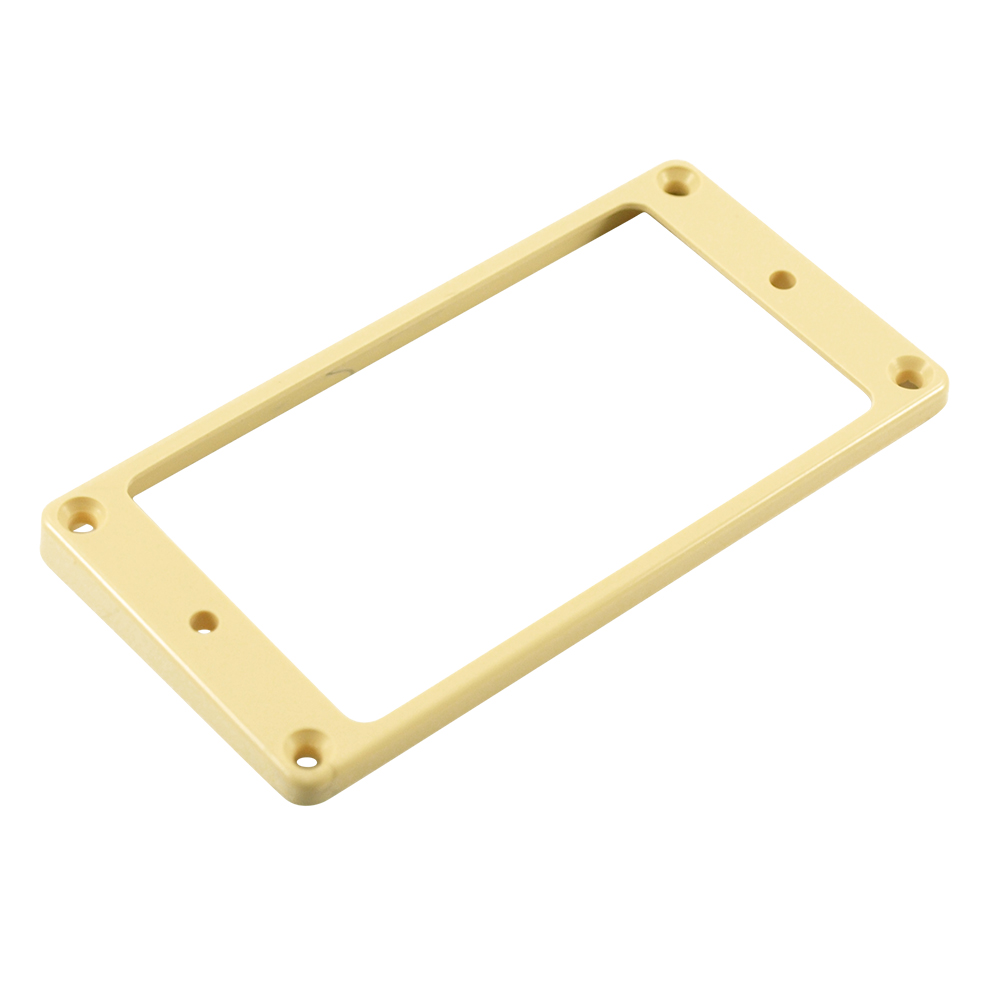

WD Plastic Humbucker Pickup Mounting Ring, Flat Bottom, Cream, Low
This is the shortest plastic humbucker mounting ring we stock and is generally used in the neck position. This is angled in height so side closest to bridge is taller than the side closest to the neck or fretboard.
Low Flat- Interior Dimensions:
- Pickup cutout width = 1.5 inches (38.5mm)
- Pickup cutout length = 2.75 inches (70.3mm)
Exterior Dimensions:
- Exterior width = 1.765 inches (44.8mm)
- Exterior length = 3.5 inches (88.8mm)
- Exterior heights tall side = .212 inches (5.4mm)
- Exterior height short side = .141 inches (3.58mm)
- Height holes center to center = 3.075 inches (78.1mm)
- Mounting holes center to center length = 3.2 inches (81.3mm)
- Mounting holes center to center width = 1.45 inches (36.8mm)
