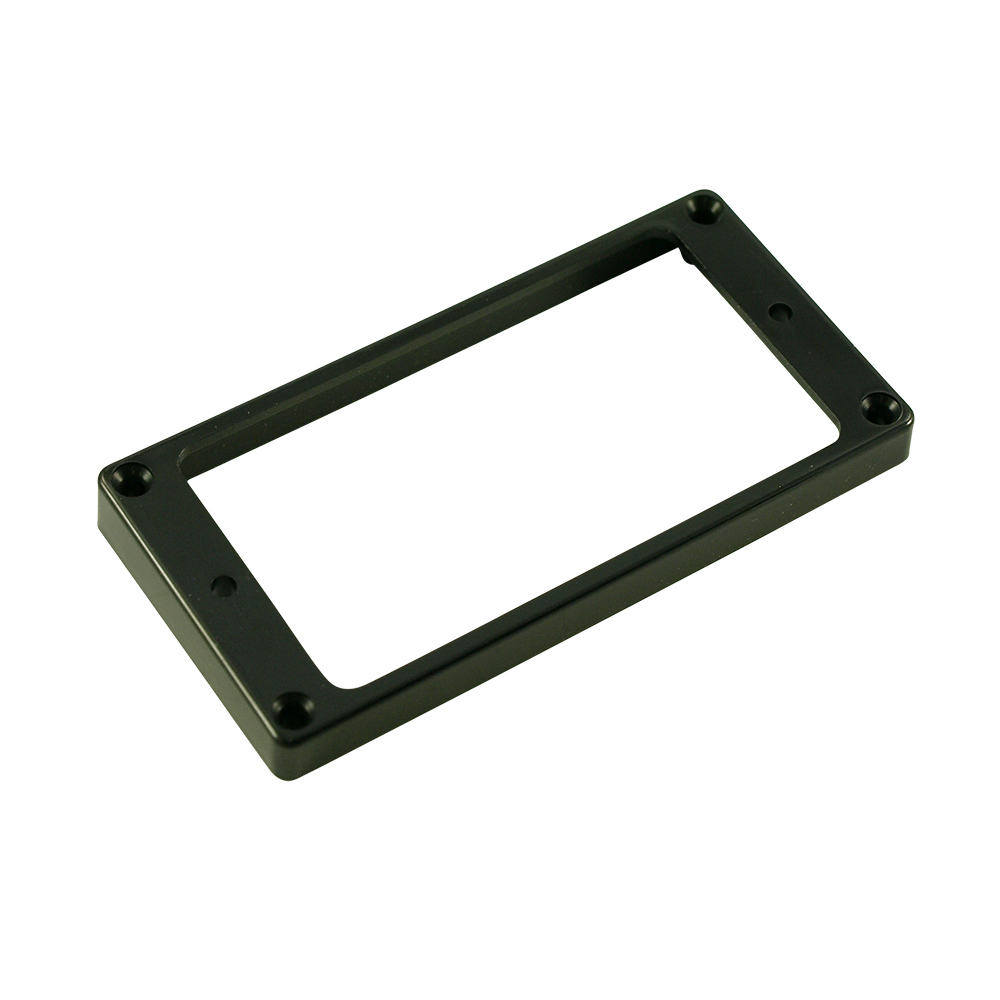

WD Plastic Humbucker Pickup Mounting Ring, Flat Bottom, Black, High
This tall plastic humbucker mounting ring is generally used in the bridge position on a two or three pickup guitar. This mounting ring is angled in height so the side closest to bridge is taller than the side closest to the neck or fretboard.
High Flat- Interior Dimensions:
- Pickup cutout width = 1.5 inches (38.2mm)
- Pickup cutout length = 2.76 inches (70.2mm)
Exterior Dimensions:
- Exterior width = 1.76 inches (44.7mm)
Exterior length = 3.50 inches (89.1mm) - Exterior heights tall side = .375 inches (9.5mm)
- Exterior height short side = .295 inches (7.5mm)
- Height holes center to center = 3.07 inches (78mm)
- Mounting holes center to center length = 3.185 inches (8.09mm)
- Mounting holes center to center width = 1.43 inches (36.3mm)
