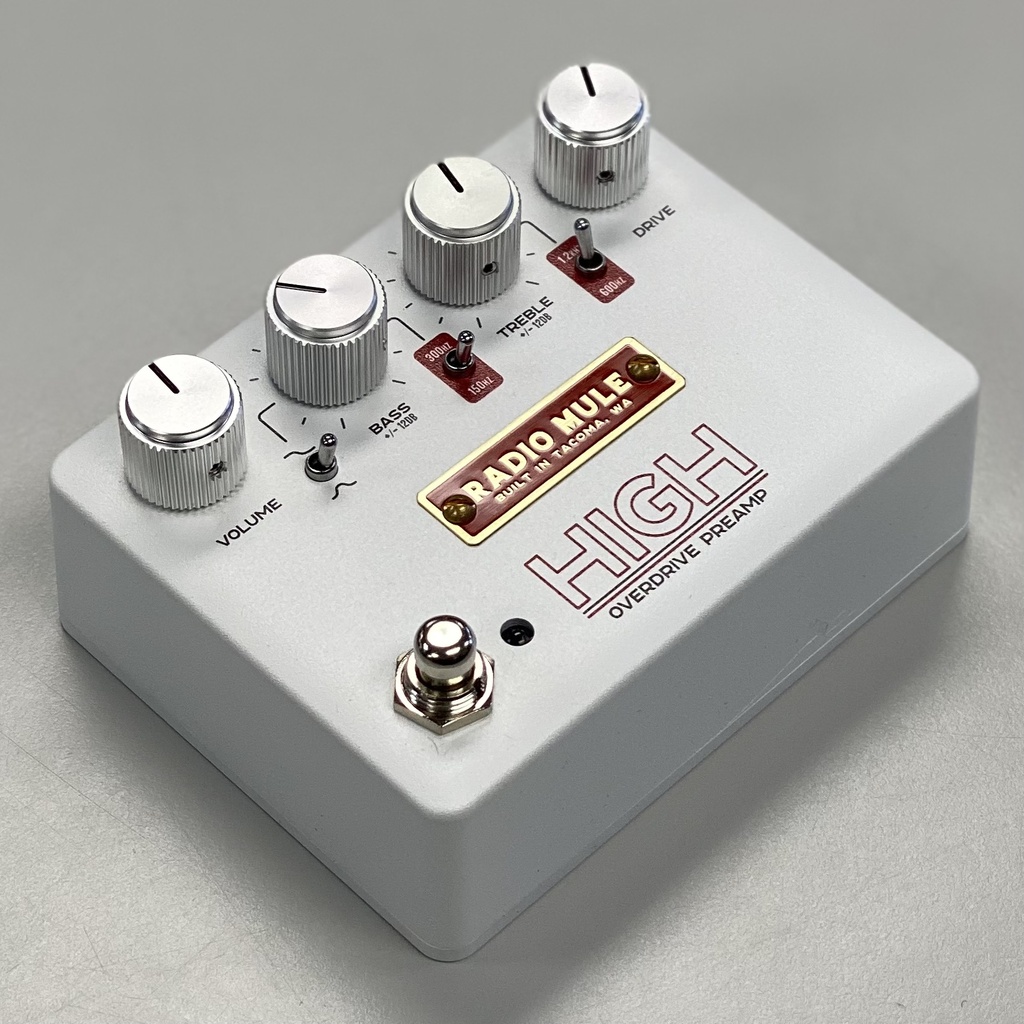

Introducing High, the new low-gain overdrive preamp from Radio Mule. Inspired by hi-fi and studio preamp designs, as well as some of the most popular overdrive circuits in history. Combining internal voltage doubling, asymmetric diode clipping, a 2-band active EQ, and an active volume control that supplies up to 15db of clean gain; High brings new levels of clarity and tone shaping to your pedal board.
CONTROLS
Volume: Active volume control. From full attenuation to +15db volume boost.
Bass: Boost or attenuate low frequencies by up to 12db.
Treble: Boost or attenuate high frequencies by up to 12db.
Drive: Increase gain to the clipping circuit, adding grit and compression.
EQ TOGGLES
Bass EQ shape (): Toggles Bass control eq curve between a low-shelf filter (boost or cut everything below the cutoff frequency) and peaking or bell shaped filter.Bass cutoff frequency: Toggles between a 150hz and 300hz cutoff frequency.
Treble cutoff frequency: Toggles between 600hz and 1.2khz cutoff frequency . Treble control is hardwired as a hi-shelf filter.
DETAILS
Input impedance 1 Mohm.
Output Impedance 1 Kohm.
Dimensions W 4.6" (117mm) x L 3.5" (89mm) x H 2.25" (57mm)
Use only a 9v, center-negative, 100ma or greater power supply. An isolated power supply is recommended if chained with other effects.
All Radio Mule pedals are hand built in Tacoma, WA.
Specifications
| Brand | Radio Mule |
