SPECS
- neck type
- GRGMaple neck
- top/back/body
- Poplar body
- fretboard
- Bound Purpleheart fretboardRed Sharktooth inlay
- fret
- Medium frets
- number of frets
- 24
- bridge
- F106 bridge
- string space
- 10.5mm
- neck pickup
- Infinity R (H) neck pickupPassive/Ceramic
- bridge pickup
- Infinity R (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- Black
NECK DIMENSIONS
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 400mmR

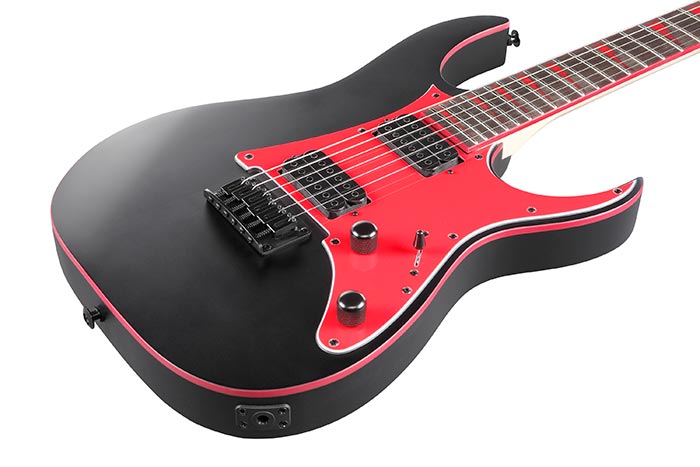

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
Features
Maple neck
The Maple neck provides stability and bright tonal character.
Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.
Mono-unit output jack
The mono-unit output jack is made of solid, durable material and is a single piece to avoid unwanted movement and loosening of the jack, which leads to contact failure or disconnection. This innovation allows for long term playing enjoyment and minimal maintenance.
F106 bridge
The F106 bridge enriches sustain. String height adjustment can be done easily and independently.
Infinity R H-H pickups
Ibanez Infinity pickups deliver an accurate and tight sound with excellent dynamics. Even under heavy settings, they do not lose tonal clarity.
