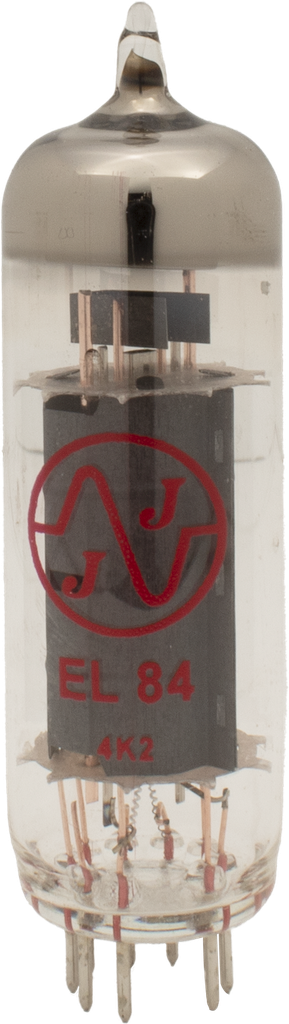

JJ EL84/6BQ5 Power Tube

https://www.thelaboratory.com/web/image/product.template/21079/image_1920?unique=5a5ae51

29.99 29.990000000000002 USD 29.99

29.99

Not Available For Sale

  • Brand

This combination does not exist.

15-day money-back guarantee on most new items.
In Stock items ship within 1 Business Day.
Buy Now, Pay Later- Various Interest Free Options
Click here to prequalify with no credit score impact

The JJ Electronic EL84 is a solidly built EL84 / 6BQ5 with excellent tonal qualities. JJ’s rugged construction of this tube offers high reliability without any compromise to the sound. This tube has solid lows with warm bright mids and shimmery highs. When saturated the harmonics are rich and dynamic. The JJ EL84 nails the classic sound of this tube. This tube can replace any EL84 or 6BQ5 tube.

Product Measurements by Type

Body Height71.4 mm
Cathode Current (Ik)≤ 65 mA
Filament Current (If)0.76 A
Filament Voltage (Uf)6.3 V
Gain (μ)19
Grid 1 to filament capacitance (cg1f)0.15 pF
Grid Circuit Resistance 1 (Rg1), Automatic Bias1 MΩ
Grid Circuit Resistance 1 (Rg1), Fixed Bias0.3 MΩ
Grid Voltage 1 (Ug1)≥ -100 V, -7.3 V typical
Grid Voltage 2 (Ug2)≤ 300 V, 250 V typical
Grid to Cathode Capacitance (cg/k)10 pF
Grid to Plate Capacitance (ca/g)0.6 pF
Heater to cathode voltage (Uk/f)≤ 100 V
Internal Resistance (Ri)40 kΩ
Item Diameter22 mm
Item Height77.8 mm
Plate Capacitance (ca)5.1 pF
Plate Current (Ia)48 mA
Plate Dissipation (Wa)≤ 12 W
Plate Voltage (Ua)≤ 300 V, 250 V typical
Transconductance (S)11.3 mA/V


Specifications


Brand JJ/Tesla
