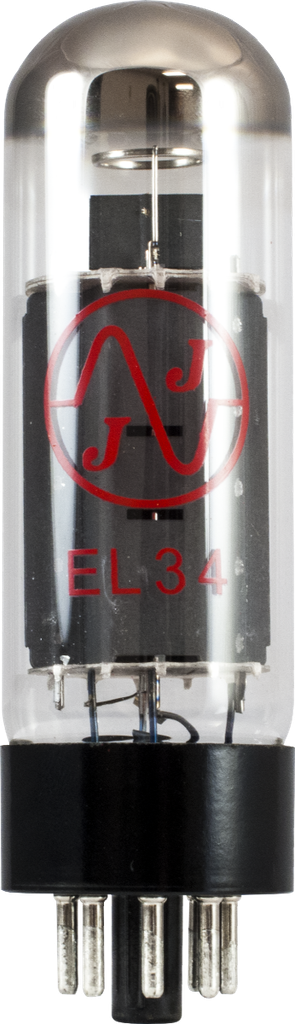

JJ EL34 Power Tube

39.99 39.99 USD 39.99

39.99

  • Brand

This combination does not exist.

Only 2 Units left in stock.

30-day money-back guarantee on most new items.
In Stock items ship within 1 Business Day.

The JJ Electronic EL34 is another classic from JJ. This tube features a rugged construction leading to an incredibly reliable EL34 with astonishing tone. Overall the sound is nicely balanced with tight lows, a rich and dynamic mid range and clear highs. The JJ EL34 is a great replacement for guitar amplifiers and stereo amps as well.

Product Measurements by Type

Body Height98 mm
Cathode Current (Ik)≤ 150 mA
Filament Current (If)1.5 A
Filament Voltage (Uf)6.3 V
Gain (μg2/g2)11
Grid 2 dissipation (Wg2)8 W
Grid Current 2 (Ig2)14.9 mA
Grid Voltage 1 (Ug1)-10 V to -13.5 V typical
Grid Voltage 2 (Ug2)≤ 450 V, 265 V typical
Grid Voltage 3 (Ug3)0 V typical
Grid capacitance (cg1)15.5 pF
Grid to Plate Capacitance (ca/g)1.3 pF
Heater to cathode resistance (Rk/f)20 kΩ
Heater to cathode voltage (Uk/f)≤ 100 V
Internal Resistance (Ri)15 kΩ
Item Diameter33.3 mm
Item Height112 mm
Plate Capacitance (ca)10 pF
Plate Current (Ia)100 mA
Plate Dissipation (Wa)≤ 25 W
Plate Voltage (Ua)≤ 800 V, 250 V typical
Transconductance (S)11 mA/V


Specifications


Brand JJ/Tesla
