Audio Technica ATW-1101/L System 10 2.4 GHz Wireless System with MT830cW Lavalier Mic

Enjoy high-fidelity digital wireless in an easily expandable system

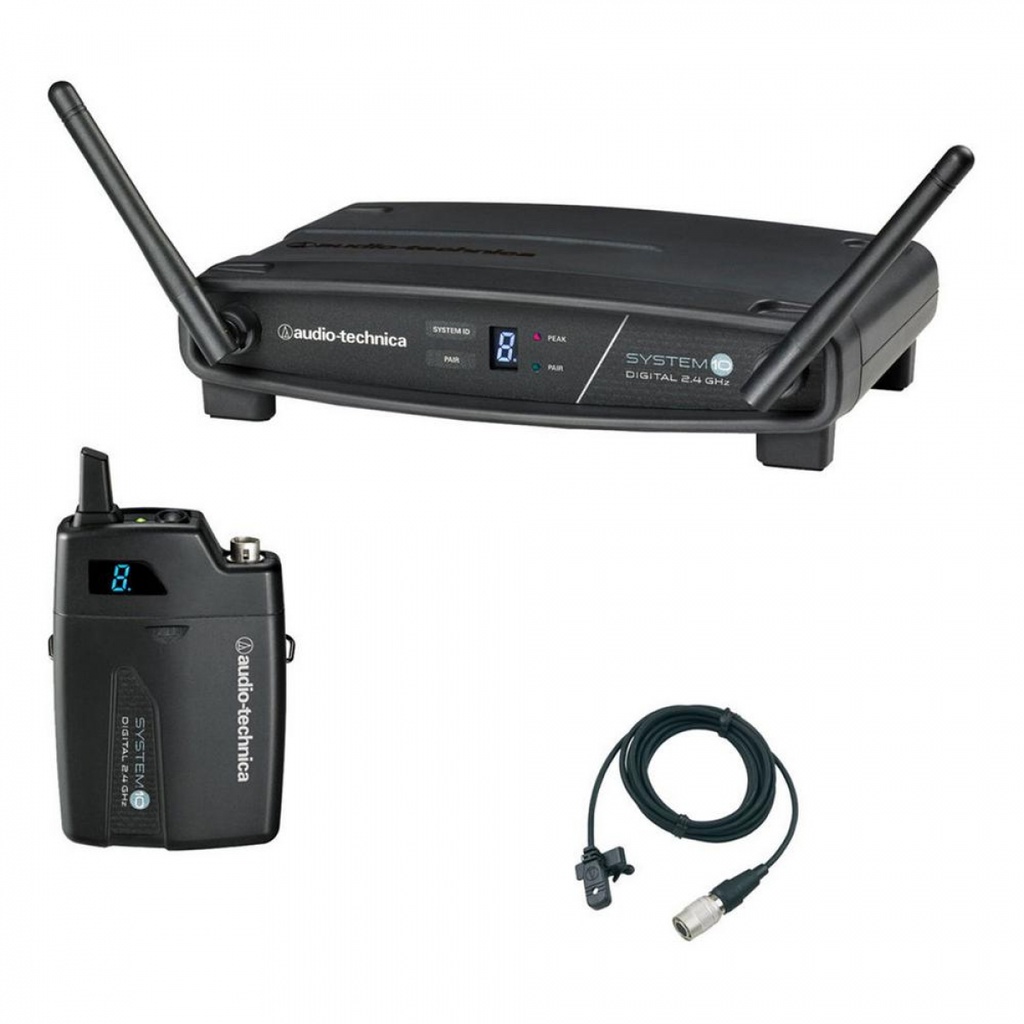

The ATW-1101/L configuration features ATW-R1100 receiver and ATW-T1001 UniPak® body-pack transmitter with an MT830cW omnidirectional lavalier microphone.

System 10

Audio-Technica’s System 10 is a digital high-fidelity wireless system designed to provide performing musicians and presenters with advanced 24-bit operation; easy setup; and clear, natural sound quality. Operating in the 2.4GHz range, far from TV and DTV interference, this advanced package offers extremely easy operation and instantaneous channel selection. Up to 8 channels may be used together without any frequency coordination problems or group selection issues. The system's receivers and transmitters offer an easy-to-read digital ID display, and ensure clear communications by providing 3 levels of diversity assurance: frequency, time, and space.

• Frequency Diversity sends the signal on 2 dynamically-allocated frequencies for interference-free communication.
• Time Diversity sends the signal in multiple time slots to maximize immunity to multipath interference.
• Space Diversity uses 2 discreet antennas on each transmitter and receiver to maximize signal integrity.

Includes

• ATW-R1100 receiver
• ATW-T1001 UniPak® transmitter
• MT830cW omnidirectional lavalier microphone
  • AT8420 mic clothing clip
  • AT8130 mic windscreens

Features

• Digital 24-bit / 48kHz wireless operation for ultimate sound quality and dependable performance
• 2.4GHz range – completely free from TV interference
• Three levels of diversity assurance: frequency, time, and space
• Automatic frequency selection for seamless, interference-free operation
• Extremely easy operation with instantaneous channel selection, sync, and set-up
• State-of-the-art digital receiver for reliable performance
• Balanced XLR and unbalanced ¼" output jacks with level control

Specifications

• Overall System:
  • Operating Frequencies: 2.4GHz ISM band
  • Dynamic Range: > 109dB (A-weighted), typical
  • Total Harmonic Distortion: < 0.05%, typical
  • Operating Range: 30m (100') typical, open range environment with no interfering signals
  • Operating Temperature Range: 32°F to 104°F (0°C to +40°C), note: battery performance may be reduced at very low temperatures
  • Frequency Response: 20Hz - 20kHz, depending upon microphone type
  • Audio Sampling: 24-bit / 48KHz
• ATW-R110 receiver:
  • Receiving System: Diversity (frequency/time/space)
  • Maximum Output Level:
    • XLR, balanced: 0dBV
    • ¼" (6.3 mm), unbalanced: +6dBV
  • Power Supply: 100-240VAC (50 / 60Hz) to 12VDC, 0.5A (center positive) switched-mode external power supply
  • Dimensions (W x H x D): 7.48" x 1.82" x 5.06" (190 x 46.2 x 128.5mm)
  • Net Weight: 10.2oz. (290g)
  • Power supply included
• ATW-T1001 UniPak® transmitter:
  • RF Output Power: 10mW
  • Spurious Emissions: Following federal and national regulations
  • Input Connection: 4-pin Locking Connector:
    • Pin 1: GND
    • Pin 2: INST INPUT
    • Pin 3: MIC INPUT
    • Pin 4: DC BIAS +9V
  • Batteries (sold separately): (2) 1.5V AA
  • Battery Life: > 7 hours (alkaline)
  • Dimensions (W x H x D): 2.76" x 4.21" x 0.98" (70.2 x 107 x 24.9mm)
  • Net Weight (without batteries): 3.5oz. (100g)
• MT830cW lavalier microphone:
  • Element: Condenser
  • Polar Pattern: Omnidirectional
  • Cable: 55" (1.4m), terminated for use with Audio-Technica UniPak® body-pack transmitters
