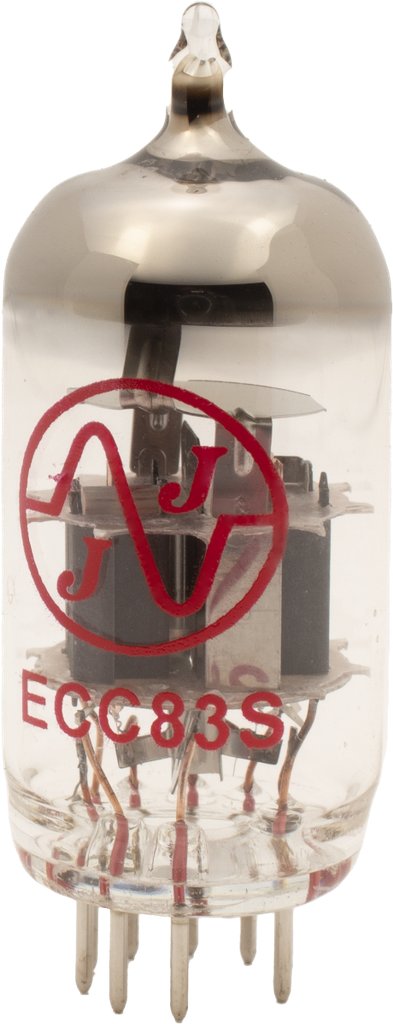

JJ ECC83/12AX7A Preamp Tube

29.99 29.990000000000002 USD 29.99

29.99

  • Brand

This combination does not exist.

Only 2 Units left in stock.

15-day money-back guarantee on most new items.
In Stock items ship within 1 Business Day.
Buy Now, Pay Later- Various Interest Free Options
Click here to prequalify with no credit score impact

The JJ Electronic 12AX7 / ECC83 has quickly become a modern classic in preamp tubes. Its rugged design and rich harmonics make this tube an obvious choice for musicians who need a reliable and high quality tube at a reasonable price.

The balanced tone of the JJ 12AX7 works well in any amp. This versatile tube sounds excellent in clean amps offering an amazing dynamic response while also proving itself in high gain amps with its low noise and noticeably less microphonic issues than other tubes. The warm highs and transparent lows make it a great choice for any position in a tube amp. The JJ 12AX7 is the go-to tube of many amp builders and touring musicians.

Product Measurements by Type
Body Height49.2 mm
Cathode Current (Ik)≤ 8 mA
Filament Current (If)300 / 150 mA
Filament Voltage (Uf)6.3 / 12.6 V
Gain (μ)100
Grid Circuit Resistance (Rg)2.2 MΩ
Grid Voltage (Ug)≥ -50 V, -2 V typical
Heater to cathode resistance (Rk/f)150 kΩ
Heater to cathode voltage (Uk/f)≤ 180 V
Internal Resistance (Ri)62.5 kΩ
Item Diameter22 mm
Item Height56.3 mm
Plate Current (Ia)1.2 mA
Plate Dissipation (Wa)≤ 1 W
Plate Voltage (Ua)≤ 300 V, 250 V typical
Transconductance (S)1.6 mA/V
Packaging Information
Packaging Dimensions1 in. × 1 in. × 2.5 in.
Weight (Packaging)0.032 lbs.


Specifications


Brand JJ/Tesla
