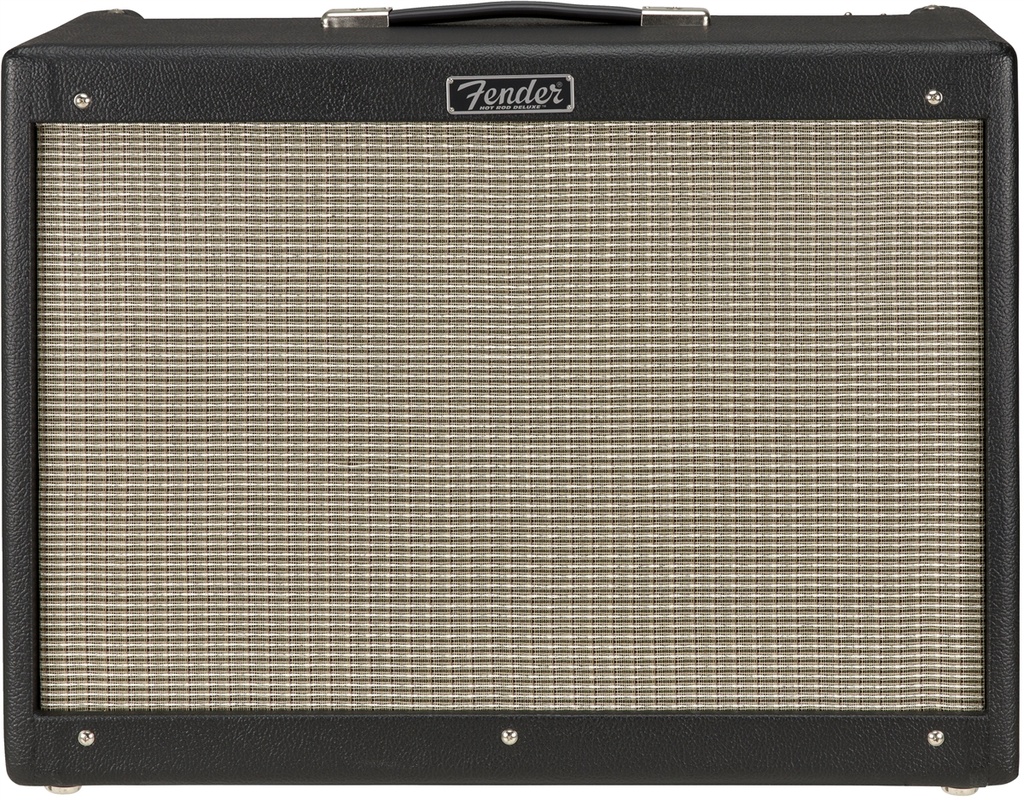

Fender Hot Rod Deluxe IV

An updated version of the legendary amplifier that's been the heart of many guitarists' rigs, the Hot Rod Deluxe IV features modified preamp circuitry, smoother-sounding spring reverb and updated aesthetics that any player is sure to appreciate. A supercharged amp decked out with player-requested features, this scorching 40-watt 1x12" combo is ideal for guitarists who need hot-rodded power with performance to spare.

Features

• 40 watts; Normal, Drive, and More Drive channels
• Celestion 12" A-Type speaker
• Modified preamp circuitry for increased overdriven note definition
• Spring reverb modified for improved smoothness
• Lightweight pine cabinet
• Includes 2-button footswitch and cover

Accessories

• Footswitch - 2-Button 3-Function (Channel Select, Drive/More Drive), P/N: 0994062000 (Included)
• Included Accessories - Includes two-button footswitch and fitted cover

Electronics

• Voltage - 120V
• Wattage - 40 Watts
• Controls - Presence, Reverb, Master Volume, Middle, Bass, Treble, Drive Select Switch, Drive Volume, Bright Switch
• Channels - Three - Selectable (Normal, Drive and More Drive)
• Inputs - Two - (1/4", Input 2 operates at -6dB)
• Speaker Jack - Two 1/4" Parallel (Internal and External)
• Effects - Reverb
• Effects Loop - 1/4" - (Preamp Out, Power Amp In)

Hardware

• Cabinet Material - Lightweight Pine
• Amplifier Covering - Black Textured Vinyl
• Grille Cloth - Lightly-Aged Silver
• Amplifier Jewel - Red Jewel
• Front Panel - Black
• Handle - Molded Plastic Strap with Nickel-Plated Caps

Speakers

• Speakers - One - 12" Celestion® A-Type
• Total Impedance - 8 ohms

Tubes

• Preamp Tubes - 3 x 12AX7
• Power Tubes - 2 x 6L6
• Rectifier - Solid State

Measurements

• Height - 18.75" (47.6 cm)
• Depth - 10.4375" (265 mm)
• Width - 23.5" (59.7 cm)
• Weight - 41 lbs. (18.59 kg)
